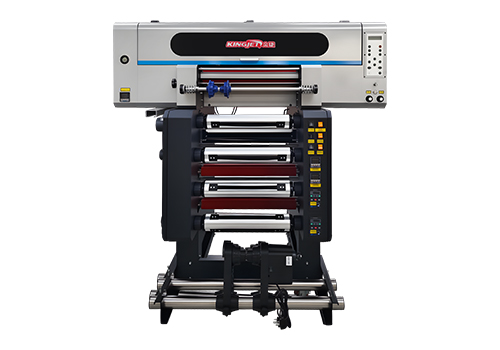

KingJet KJ-604GUV 24 Inch Integrated Gold Stamping UV DTF Printer
Multifunctional, high-end UV DTF sticker printing machine, personalized customization cost is lower, showing high gloss and 3D dimensional transfer effect.
Main Features:
1. No traditional gold stamping, no plate-making.
2. Scratch-resistant, wear-resistant, waterproof, sunscreen, no warping.
3. No limitation of order quantity, lower cost of personalized customization.
4. Automatic laminating and peeling off waste film、gold foil, no need for a laminating machine, saving time and labor.
Configuration Highlights:
- Printhead: 4*EPSON I3200-U1
- Printing Speed: 4sqm/h
- Max Print Width: 600mm
- Color: CMYK+W+V+gold varnish
- RIP Software: Maintop, Photoprint
Gold Stamping UV DTF Printer video
Product Features
3D Dimensional visual effects
Four i3200 printheads, CMYK+W+V+gilding varnish printing, bright colors, showing bling-bling visual effects.
automatic laminating and peeling
Fully automatic laminating and peeling off the waste film and gold foil, as well as removing glue, save time and labor.
More stable printing
Equipped with a front stepper motor, double the power than ordinary printers, good pulling force, and more stable stepping.
Uniform lamination
The heating rod heats evenly, making the product lamination uniform, and greatly improving the printing speed.
Convenient operation
The intuitive control panel and button logo for hot stamping and waste film discharge make operation easier.
Efficient curing
It is equipped with UV lamp + UV water cooling system to achieve more efficient and high-quality curing.
Printing process
Product Specification
| Product | KJ-604GUV UV DTF Printer |
| Model | KJ-604GUV |
| Printhead | 4*EPSON I3200-U1 |
| Printing Speed | 4sqm/h |
| Quality Mode | 2sqm/h |
| Max Print Width | 600mm |
| Color | CMYK+W+V+gold varnish |
| Ink Type | UV ink |
| Ink Supply System | White ink stirring |
| Media Type | UV DTF AB film, waste discharge film, and gold foil |
| Curing System | UV LED curing system |
| Lamination System | Integrated gold stamping, waste discharging, and laminating system |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, photoprint |
| Input Power | AC110V/220V, 50HZ/60HZ |
| Working Environment | Temperature: 18-32℃, humidity: 46-65% |
| Machine Size | 1900*850*1420mm, 280kg |
| Water Tank Size | 110V: 420*355*220mm, 11.5kg; 220V: 360*300*220mm, 10.5kg |
| Machine Packing Size | 2440*1000*860mm, 380kg |
| Water Tank Packing Size | 110V: 530*430*440mm, 13kg; 220V: 450*390*350mm, 12kg |
Product Applications
KJ-604GUV foil stamping waste film UV DTF crystal label printer can be transferred on various irregular surfaces, especially suitable for special personalized packaging product design, showing 3D dimensional visual effects, making the product more attractive, at the same time, scratch-resistant, the use of more durable. Widely used on glass, metal, acrylic, ceramics, plastics, wood, and other materials.
Ceramics
Acrylic
Glass
Plastic
Gift Box
Metal
FAQ
What is the difference between this integrated foil stamping UV DTF printer and other UV DTF printers?
The integrated foil stamping UV DTF printer automatically laminates and peels off the waste film and gold foil during the printing process, without manual operation, saving time and effort.
In addition, after peeling off the waste film to remove the glue, the application range is wider and can meet various creative packaging designs.
Can UV DTF print T-shirts?
UV DTF printing is not suitable for printing directly on fabrics such as T-shirts. Because the UV ink used in UV DTF printing does not adhere well to the fabric fibers, it may peel or crack over time.
If you need to print T-shirts, you can choose a professional T-shirts printer such as a DTF printer or a DTG printer, which KingJet provides.
How durable is the UV DTF printed pattern?
UV DTF printers use special UV inks, and the printed patterns have good scratch resistance, light resistance, and water resistance, so the patterns can remain stable and durable for a long time.
What is the difference between UV DTF and DTF?
UV DTF is more suitable for transfer printing on various hard surfaces, while DTF is good at printing on textile soft surfaces such as T-shirts and hoodies.
UV DTF printers mainly use UV ink and AB film, while DTF printers use DTF film, DTF powder and DTF ink.
UV DTF printers rely on UV light and integrated lamination technology, while DTF printers require powder and oven drying.
