KingJet KJ-1060UV Multifunctional All in One UV Printer For Sale
Higher-end, more comprehensive, and multi-functional UV printer/UV flatbed printers, provide strong competitiveness for your gift packaging, personalized customization, and home decoration design.
Main Features:
1. Patent design, perfectly reducing printing noise.
2. Supports crystal label hot stamping varnish printing solution, one machine for multiple uses.
3. Visual positioning function combined with UV curing technology to achieve precise printing.
4. The automatic height measurement function, sensing material thickness, avoids damage to the printhead, and is safer and more reliable.
5. Three-height platform designs to meet the printing needs of objects of different heights.
6. Optional multiple mold designs to print different flat and cylindrical objects.
Configuration Highlights:
- Printhead: 2-4 *EPSON I3200-U1 optional
- Max Print Width: 100x60cm
- High-Speed Printing: 4pass 19m²/H ; 6pass 12m²/H ; 8pass 8.75m²/H
- Color: C/M/Y/K/LC/LM/LK/LKK/W/V
- RIP Software: Uitra Print/Photoprint/GMG
KJ-1060UV Printer's Excellent Printing Effect and Applications
Product Features
Perfect noise reduction
It is the first in China to design small holes to reduce the resonance size by observing the conch effect to achieve perfect noise reduction.
Humanized settings
A handling device for reducing the difficulty of handling and narrow door problems, the smallest 70cm door can be entered.
High wear-resistant push-pull design
With constant R&D and innovation, the push-pull slider has passed international tests and can be pushed and pulled 200 times without wear.
Three-stage heating methods
Ink sac heating + printhead base heating + secondary cartridge heating, can reduce floating ink and ensure the quality of printing.
10-color solution
Customized design of secondary ink cartridges can achieve 10-color solutions, and the pattern colors are more vivid.
Intelligent cleaning printhead
Single-group cleaning reduces printhead loss and easily achieves material and time savings.
visual positioning
Efficient curing
3D visual effects
Versatility
White ink circulation system
Professional 10-color printing
Elevating aluminum capping system
EPSON I3200 print head

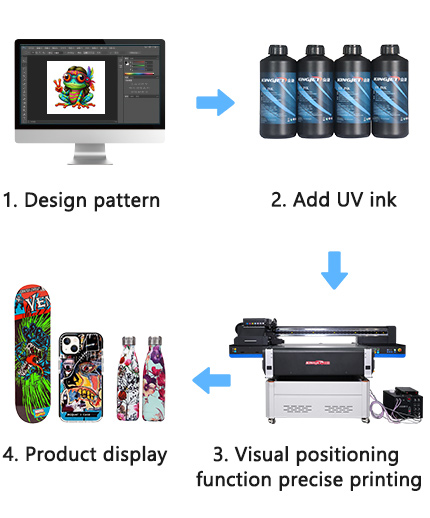

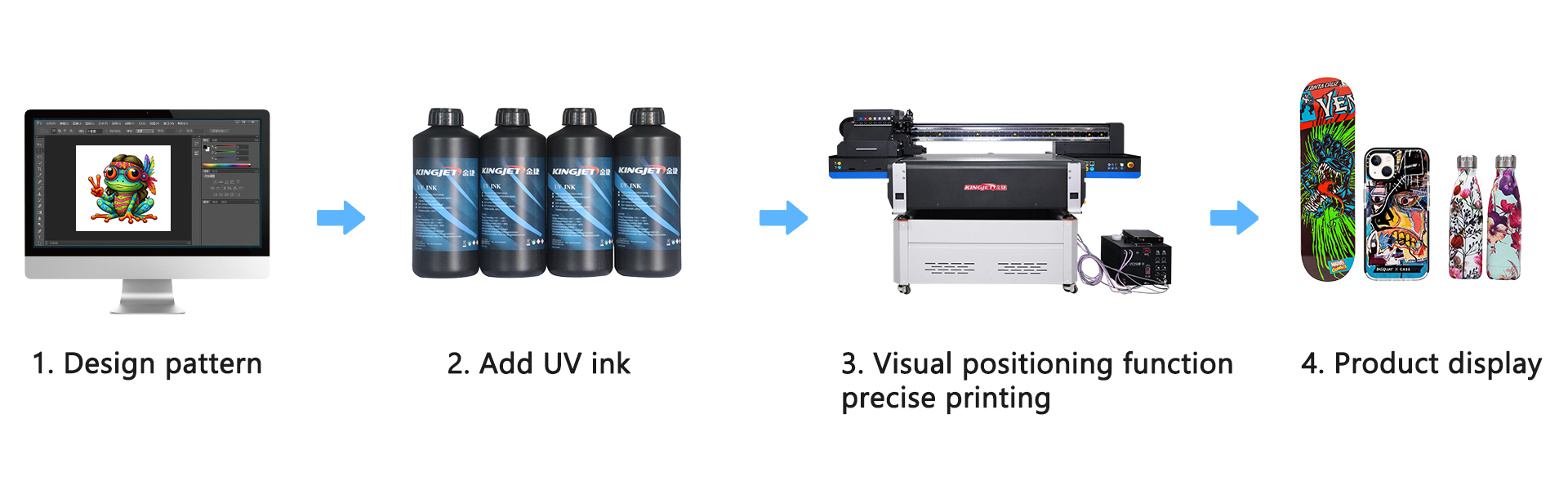

KJ-1060UV Printer Printing process
Product Specification
| Product | KJ-1060 UV Flatbed Printer |
| Model | KJ-1060UV |
| Print head | EPSON I3200-U1 |
| Print head | 2-4 pcs optional |
| Print accuracy | 720*2400 (dpi) |
| Print height | 0-800mm |
| Printing Speed | Output (sqm/h) |
| High Speed | 720*1200 dpi-4pass 19m²/H ; 720*1800 dpi-6pass 12m²/H ; 720*2400 dpi-8pass 8.75m²/H |
| Medium Speed | 720*1200 dpi-4pass 12.96m²/H ; 720*1800 dpi-6pass 8.5m²/H ; 720*2400 dpi-8pass 6.35m²/H |
| Low Speed | 720*1200 dpi-4pass 9.25m²/H ; 720*1800 dpi-6pass 6m²/H ; 720*2400 dpi-8pass 4.5m²/H |
| Ink Type | UV LED ink |
| Ink Color | C/M/Y/K/LC/LM/LK/LKK/W/V |
| Software | Uitra Print/Photoprint/GMG |
| Transport Interface | USB-2.0/3.0 |
| Image Format | TIFF/JPG/PNG/PDF/EPS |
| Computer System | Win7/Win8/Win10 |
| Input Voltage | AC-220V (±10%) , 50HZ , ≤16A |
| Operating Powder | <530W |
| Machine Size | 2155*1110-1160 (mm), 330kg |
| Package Size | 2250*1300*1000 (mm), 380kg |
Product Applications
UV printer/UV flatbed printers have broad application prospects in many fields such as personalized customization, gift packaging, home decoration, and artistic creation due to their high precision, multi-material adaptability, fast curing, and rich colors. They can print plastics, metals, glass, ceramics, wood boards, and other materials.
Phone Case
Badge
Acrylic
Cup
Suitcase
Skateboard
Related products
KJ-3360UV Flatbed Printer
KJ-6090UV Flatbed Printer
KJ-1216UV Flatbed Printer
UV printer Related Consumables
UV Ink
Fast curing, environmentally friendly, no volatile organic solvents, low VOC, strong weather resistance, and abrasion resistance.
FAQ
What is the difference between UV DTF and UV flatbed printer?
The UV flatbed printers print directly on hard items without lamination, its direct printing patterns are more durable. UV DTF printer is an all-in-one printer with integrated printing and lamination, and its printed UV DTF can be transferred to any hard flatbed items.
What is the printhead used in the machine? Is the printhead original?
The printhead used in our KingJet UV flatbed printer are EPSON I3200-U1 and all of our printhead is original and brand new.
Do you have technical training provided?
Yes, our technicians provide professional and patient online or on-site technical training, and one-on-one technical guidance.
How long is the validity of ink?
1 Year.
