KingJet KJ-604Pro 24-Inch DTF Printer For T-Shirt Textile
The high-end KJ-604Pro DTF printer integrates advanced technology and user-friendly design. With its excellent performance and thoughtful details, make your T-shirt printing process more intelligent, efficient, and stable.
Main Features:
1. The integrated cabinet body is thicker and more stable, printing will not shake.
2. Suitable for multiple printing solutions: spot-color solutions, fluorescent color solutions, and no powder glue solutions
3. Multiple humanized settings: computer stands, ink pre-shaking device, ink volume display screen, machine fault three-color light, etc., to better understand the operation of the machine.
4. The BYHX board is more convenient to operate and easier to adjust the software settings.
Configuration Highlights:
- Printhead: 4*EPSON I3200-A1
- Printing Speed: 4pass: 30sqm/h; 6pass: 20sqm/h; 8pass: 16sqm/h
- Max Print Width: 680mm
- Color: C, M, Y, K, W (RGBO and neon colors available)
- RIP Software: Maintop, Photoprint, CADlink (optional)
DTF Printer printing video
Product Features
Computer stand
Add a computer stand device on the side of the machine for free movement and easy operation.
Ink level display screen
More intuitive visibility of ink usage, allowing for timely addition of ink to prevent printing interruptions.
Three color light alarm device
The three-color light can better check the operation of the machine, and it will display red when there is a fault, board error, or paper shortage.
Integrated container
Adopting an integrated cabinet as support, the frame is thicker and more stable, without shaking during printing.
Ink Pre-Shaking Device
Adding an ink pre-shake device can prevent ink sedimentation and make printing smoother.
Enhanced feed up traction
Adding a swing lever to the material feeding position can increase the material feeding traction and make printing smoother.

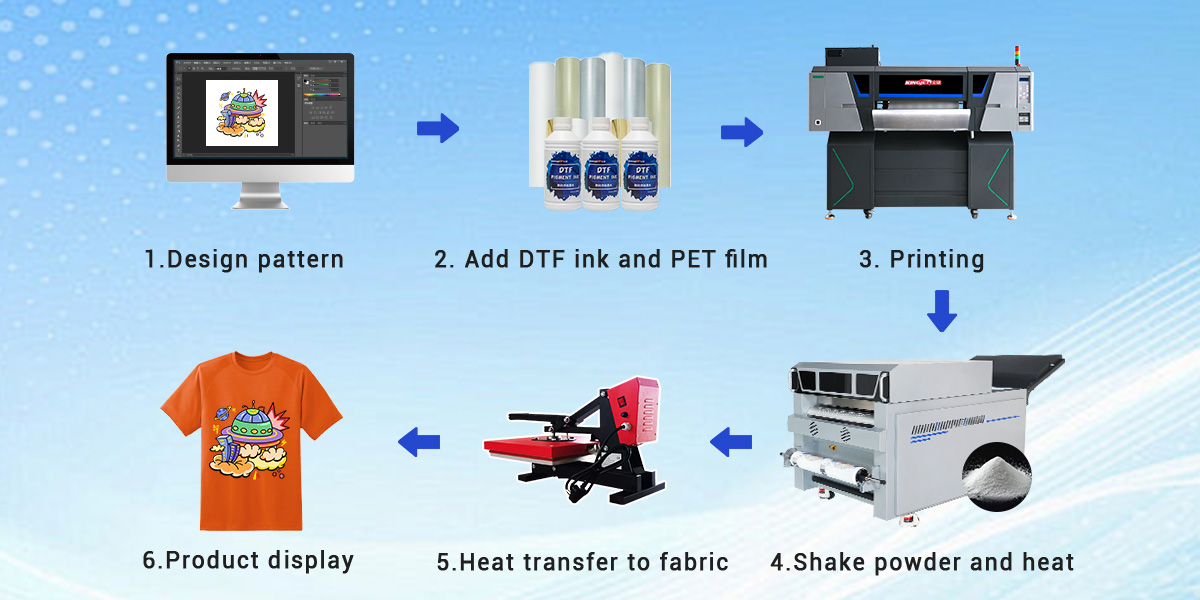

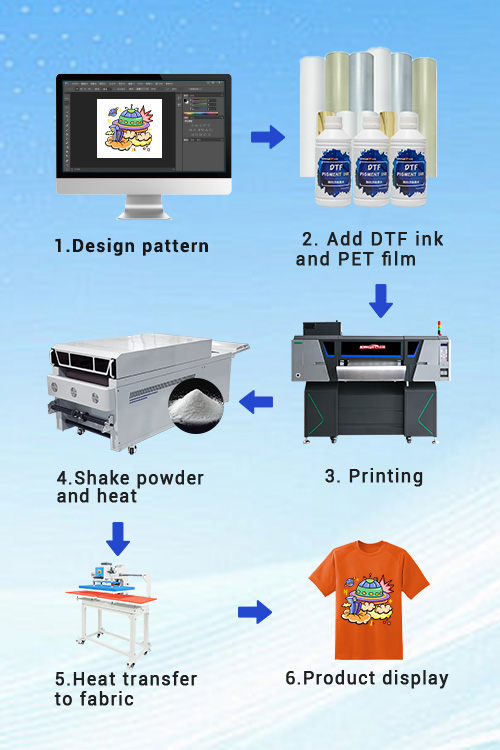

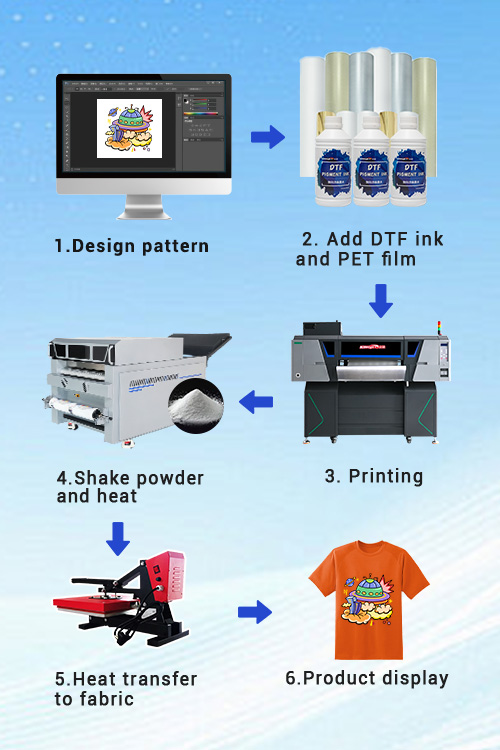

KJ-604Pro DTF Printer Printing process
Product Specification
| Product | KJ-604pro DTF printer |
| Model | KJ-604pro |
| Printhead | 4*EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 30sqm/h |
| 6 Pass | 20sqm/h |
| 8 Pass | 16sqm/h |
| Max Media Width | 730mm |
| Max Print Width | 680mm |
| Ink Type | Waterbased pigment ink |
| Color | C, M, Y, K, W (RGBO and neon colors available) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, photoprint, CADlink (optional) |
| Input Power | AC110V/220V, 50HZ/60HZ, 350W-4000W |
| Working Environment | Temperature: 18-32℃, humidity: 46-65% |
| Machine Size | Printer: 2060*890*790mm, 217kg , 1.483cbm ; shaker: 2110*1180*1180mm, 290kg , 2.938cbm |
Product Applications
DTF printer is a powerful tool in the field of clothing printing. It can be applied to various clothing fabrics, such as pure cotton, polyester, nylon, treated leather, polyester fabrics, 50/50 blended fabrics, and light and dark fabrics. It can also be applied to non-clothing fields, such as shoes, hats, canvas bags, umbrellas, pillows, curtains, tablecloths, etc.
Hoodies
T-Shirt
Denim
Umbrella
Shoes
Canvas Bag
FAQ
Is the voltage selectable?
Currently, our KingJet DTF printer uses a single-phase power source. You only need to tell us your local single-phase voltage and plug standard, and we will customize the machine according to your needs. 110V and 220V voltage are available.
What is the printing cost of DTF printer?
The DTF printer print cost for a 1 sqm transfer fabric pattern is about 1-2 USD and about 0.07- 0.1 USD for A4 size printing.
What is the difference between DTF printing and screen printing?
DTF printing does not need to make template samples like screen printing; meanwhile, DTF can do much more complicated pattern printing work, which screen printing cannot.
How long will the print last on the garment? How many times will it be washed?
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles following the international washing standard.
Related products
Powderless DTF printer
A3 DTF printer
KJ-602 DTF printer
Related Consumables
DTF Ink
- Usage savings
- Not easily clogged
- Environment protection
- High color reproduction
- It can print on various fabrics such as cotton, polyester, canvas, denim, etc.
DTF PET film
- Antistatic.
- Good ink absorption.
- Good stretch resilience.
- Cold tearing and hot tearing are optional.
DTF hot melt powder
- Excellent adhesion.
- Non-toxic and odorless.
- Excellent physical performance.
- Suitable for various textile materials.
- Fine powder, medium powder, and coarse powder are available.
One-Stop Services
Comprehensive service starting from pre-sale to after-sale to help your business on track.
Free Printing Sample
To show the quality and capability of our printer to satisfy your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
Fast Delivery
To meet everyone’s order quickly, we have established branches in many places around the world, saving transportation time. Products in stock usually ship within 3-5 days.
Lifetime service
You can enjoy one-year warranty on the main components of our brand machines, lifetime service for the entire machine operation, free after-sales consultation, and 24/7 technical support services.
payment method
In order to meet your various payment needs, we can accept many payment methods, such as TT, PayPal, credit card, letter of credit, western union, moneygram, etc.
Start Your Business
We would love to speak with you.
Contact us anytime for professional and personalized services.
