KingJet KJ-3202/KJ-3204 Wide Format Eco Solvent Printer

KingJet KJ-3202 /KJ-3204 eco solvent printer is equipped with a high-precision platform, with faster printing speed and clearer printing. It is also equipped with a paper shortage reminder and a three-stage temperature control system. The printing quality is better and it is suitable for printing large areas. A good helper for billboards and background walls.

Printhead: KJ-3202: 2*epson i3200-E1 , KJ-3204: 4*epson i3200-E1

Printing Speed: KJ-3202:4pass:40sqm/h , 6pass:30sqm/h

Printing Speed: KJ-3204:4pass:80sqm/h , 6pass:60sqm/h

Max Print Width: 3200mm

Color: 4 colors (K, C, M, Y)

RIP Software: maintop, photoprint (optional)

7* 0 hours
Online technical support
1 years
Warranty Lifetime Service
0 sqm
Production area
0
Dealer market protection

Product Advantages

High performance

The external triple drying (hot air + drying + cold air) system can quickly dry materials during the printing process, allowing for immediate harvesting and improved production efficiency.

Humanized design

The combined uniform resistance anti-warping sheet is used to prevent warping and wrinkling of the fabric, making the fabric flatter during the entire printing process.

Intelligent

It adopts a front, middle and rear three-stage intelligent temperature control system to monitor the temperature changes of each printing area in real time to achieve the best printing effect and quality.

Advanced platform

Equipped with an industrial-grade high-precision platform, the flatness is maintained at 0-0.5mm, achieving better printing quality and effects.

Product Main Features

Automatic ink supply

Realize automatic delivery of ink to the nozzle, and ensure that the nozzle always maintains good ink supply status, improving production efficiency.

Automatic cleaning system

The automatic cleaning and moisturizing system can keep the ink channels clear, avoid clogging and uneven inkjet, and improve printing quality.

Large area printing

The machine has a large printing width and is especially suitable for printing large-area billboards, outdoor signs, wallpapers, car stickers, canvas, etc.

EPS0N original nozzle

Using EPS0N original l3200 printheads, it has higher resolution and faster inkjet speed to meet the needs of high-quality printing.

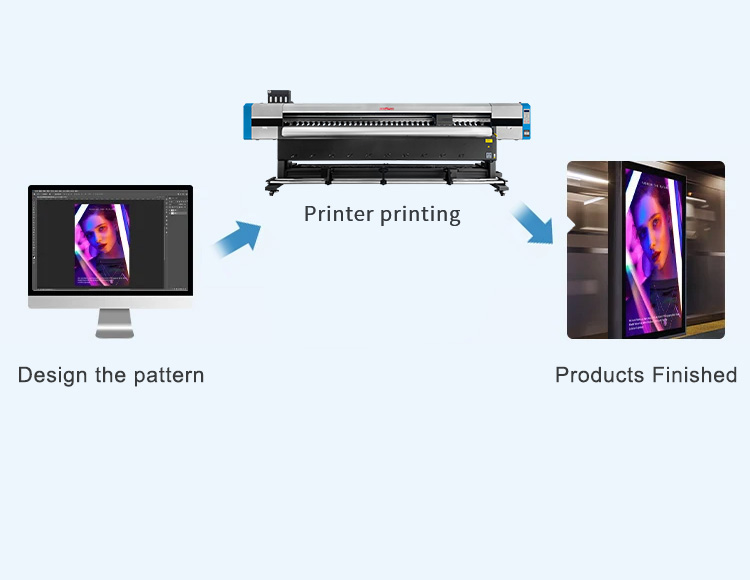

Product printing Process

Product Specification

Product Eco solvent printer
Model KJ-3202KJ-3204
Printhead2*EPSON I3200-E14*EPSON I3200-E1
Printing SpeedOutput (sqm/hr)
4 Pass40 sqm/h80 sqm/h
6 Pass30 sqm/h60 sqm/h
Max Media Width3250mm
Max Print Width3200mm
Ink TypeEco solvent ink
Color4 colors (K, C, M, Y)
Ink Supply SystemContinuous ink supply system
Media TypePP, vinyl, light box cloth, flex, canvas, leather, reflective material etc
Heating SystemFront, middle, rear 3 stages of heating platform
Drying SystemTriple dry system (hot air +infrared + cold air)
Capping & MoisturizingAuto capping system & moisturizing system
ClampCombined anti-warping clamps
RIP SoftwareMaintop, photoprint (optional)
Working EnvironmentTemperature : 18-32℃ , humidity : 46-65%
Machine Size4520*960*1495mm, 525kg
Seperate Size4600*1000*820mm, 650kg, 3.772cbm
Overall Size4600*1000*1550mm, 675kg, 7.130cbm



Get In Touch With Us

Product Applications

CMYK+W 5 colors can be applied to more than 90% of fabrics, regardless ofcolor, and can be produced in batches

Related Products

It is environmentally friendly, has long storage time, has strong adhesion and friction resistance, reduces the loss of printing colors, and has a wide range of printing media.

KJ-1601+1801 eco solvent printer is equipped with an intelligent temperature control system, which makes printing more efficient and has a wider printing table to meet large-area printing requirements.

KJ-1602+1802 eco solvent printer is equipped with advanced equipment, equipped with a variety of intelligent systems, easy to operate, and makes printing faster and more efficient.

KJ-1804 eco solvent printer has a more advanced curing and drying system, with clearer printing patterns and higher resolution, and can quickly print billboards and car stickers.

Start Printing Effortlessly

Comprehensive service starting from pre-sale to after-sale to help your business on track.

Free Printing Sample

To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.

Fast Delivery

To meet everyone’s order quickly, we have established branches in many places around the world, saving transportation time. Products in stock usually ship within 3-5 days.

Lifetime service

You can enjoy one-year warranty on the main components of our brand machines, lifetime service for the entire machine operation, free after-sales consultation, and 24/7 technical support services.

payment method

In order to meet your various payment needs, we can accept many payment methods, such as TT, PayPal, credit card, letter of credit, western union, moneygram, etc.

FAQ

Requires eco solvent printer, printing materials and eco-solvent ink to be used together.

The printhead used is EPSON I3200E1, all our printheads are original and brand new.

PP, billboards, car stickers, wallpapers, light boxes, background walls, canvas, leather, reflective materials, etc.

Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.

Design pattern – typesetting and printing – transfer pattern to printing material- complete printing

The maximum printing width of KingJet KJ-3202 and KJ-3204 eco-solvent printers are 3200mm.

Yes, our technicians provide professionally and patiently online or on-site technical training, and one-on-one technical guidance.

Yes, the machine can stop working for a long time, but the printhead needs to be moisturized and cleaned according to the machine maintenance manual to prevent ink from clogging the printhead.
