KingJet KJ-1602/KJ-1802 ECO Solvent Printer For Vinyl

KingJet KJ-1602/KJ-1802 eco-solvent printer is equipped with advanced equipment, equipped with a variety of intelligent systems, industrial-grade high-precision platform, easy to operate, printing faster and more efficient, and printing solutions are diversified to support large-area printing, which is a good helper in large-volume printing.

Printhead: KJ-1602/KJ-1802: 2*epson I3200E1

Printing Speed: KJ-1602: 4pass:40sqm/h, 6pass:30sqm/h

Printing Speed: KJ-1802: 4pass:42sqm/h, 6pass:28sqm/h

Max Print Width: KJ-1602: 1600mm ; KJ-1802: 1800mm

Color: 4 colors (C, M, Y, K)

RIP Software: maintop, photoprint(optional)

7* 0 hours
Online technical support
1 years
Warranty Lifetime Service
0 sqm
Production area
0
Dealer market protection

Product Advantages

Drying upgrade

The external triple drying system uses a combination of hot air, drying and cold air to achieve rapid drying without waiting, reducing the overall printing time.

High configuration

Equipped with an industrial-grade high-precision platform, it can provide precise printing flatness adjustment and control the flatness between 0-0.5mm to ensure the flatness of the printing surface.

Intelligent

It adopts a three-stage intelligent temperature control system to automatically adjust the temperature in different areas according to the actual operating environment to provide a suitable working environment.

Automated settings

The double-rail lifting trolley frame can automatically adjust the height according to the printing situation to prevent the trolley from colliding.

Product Main Features

Level measuring instrument

Check whether the machine is level to avoid problems such as paper jams and uneven printing. The level can be adjusted through the foot supports.

Paper shortage alarm

When the printer detects that the paper has run out, it will automatically alarm to remind the user to replenish the paper in time.

Ink supply system

Realize automatic circulation stirring function to ensure smooth supply of ink, prevent ink clogging or uneven ink stains, and achieve clear printing results.

Automatic nozzle cleaning

The nozzle can automatically perform the cleaning process without manual intervention. Reduce problems such as nozzle clogging and uneven inkjet, making printing more efficient.

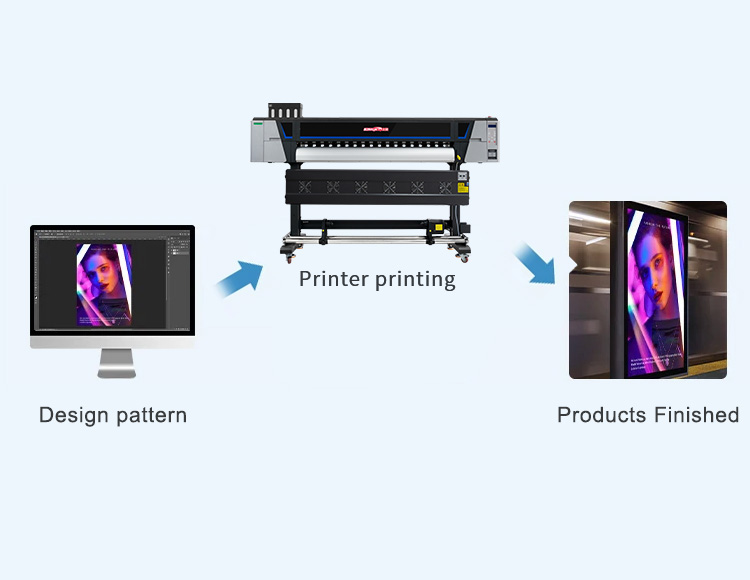

Product printing Process

Product Specification

ProductEco solvent printer
ModelKJ-1602KJ-1802
Printhead2*EPSON I3200E1
Printing SpeedOutput (sqm/hr)
4 Pass40 sqm/h42 sqm/h
6 Pass30 sqm/h 28 sqm/h
Max Media Width1650mm1850mm
Max Print Width1600mm1800mm
Ink TypeEco solvent ink
Color4 colors (C, M, Y, K)
Ink Supply SystemContinuous ink supply system
Media TypePP, vinyl, light box cloth, flex, canvas, leather, reflective material etc
Heating SystemFront, middle, rear 3 stages of heating platform
Drying SystemTriple dry system (hot air +infrared + cold air)
Capping & MoisturizingAuto capping system & moisturizing system
ClampCombined anti-warping clamps
RIP SoftwareMaintop, photoprint(optional)
Working EnvironmentTemperature : 18-32℃, humidity : 46-65%
Machine Size2590*810*1550mm , 213kg2925*890*1510mm , 210kg
Packing Size2830*840*770mm , 283kg , 1.830cbm3070*280*210mm , 280kg , 1.96cbm

Get In Touch With Us

Product Applications

4 colors (cmyk) can be selected to be printed on billboards, background walls, light boxes, canvas, leather and other materials.

Related Products

弱溶剂墨水

It is environmentally friendly, has long storage time, has strong adhesion and friction resistance, reduces the loss of printing colors, and has a wide range of printing media.

KJ-1601+1801 eco solvent printer is equipped with an intelligent temperature control system, which makes printing more efficient and has a wider printing table to meet large-area printing requirements.

KJ-1804 eco solvent printer has a more advanced curing and drying system, with clearer printing patterns and higher resolution, and can quickly print billboards and car stickers.

KJ-3202+3204 eco solvent printer is equipped with a high-precision platform and has better printing quality. It is a good helper for large-area outdoor printing.

Start Printing Effortlessly

Comprehensive service starting from pre-sale to after-sale to help your business on track.

Free Printing Sample

To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.

Fast Delivery

To meet everyone’s order quickly, we have established branches in many places around the world, saving transportation time. Products in stock usually ship within 3-5 days.

Lifetime service

You can enjoy one-year warranty on the main components of our brand machines, lifetime service for the entire machine operation, free after-sales consultation, and 24/7 technical support services.

payment method

In order to meet your various payment needs, we can accept many payment methods, such as TT, PayPal, credit card, letter of credit, western union, moneygram, etc.

FAQ

Requires eco solvent printer, printing materials and eco-solvent ink to be used together.

The printhead used is EPSON I3200E1, all our printheads are original and brand new.

Yes, our technicians provide professionally and patiently online or on-site technical training, and one-on-one technical guidance.

Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.

Design pattern – typesetting and printing – transfer pattern to printing material- complete printing

PP, billboards, car stickers, wallpapers, light boxes, background walls, canvas, leather, reflective materials, etc.

The maximum printing width of KingJet KJ-1602 is 1600mm, and the maximum printing width of KingJet KJ-1802 is 1800mm.

Yes, the machine can stop working for a long time, but the printhead needs to be moisturized and cleaned according to the machine maintenance manual to prevent ink from clogging the printhead.
