KingJet KJ-1212UV Multifunctional Flatbed UV Printer for High-Drop/Flat/Roll/Cylindrical Objects
The KJ-1212 multifunctional flatbed UV printer (optional high drop printing solution) is equipped with a visual positioning function, which allows it to scan and print at the same time, with efficient output. In addition, roll and cylindrical fixtures are installed to meet the needs of personalized gifts, promotional items, and cups.
Key Features:
1. CF3R head offers strong high-drop printing capability, up to 25mm, suitable for printing on various irregular surfaces and complex materials.
2. CCD visual positioning technology, automatic scanning, and accurate printing.
3. All-in-one device, supports printing on flat, cylindrical, and roll materials.
4. Optional rotary attachment and molds, to customize cylindrical gifts and various promotional items.
5. High color accuracy, strong relief texture, and the ability to achieve gold foil stamping effect.
Configuration Highlights:
- Print Head (option 1): 3-7*Toshiba CE4-M
- Print Height: 0-800mm
- Print Head (option 2): 5*Toshiba CF3R (High-Drop Solution)
- High-Drop Height: 1-25mm
- RIP Software: RIIN, photoprint
- Print Size: 1.2×1.2m
- Print Accuracy: 600×1800(dpi)
- Color: CMYK, LC, LM, W, V
Multifunctional Flatbed UV Printer features
CCD intelligent visual positioning
CCD visual scanning configuration industrial camera, 600x1800dpi ultra-high resolution, matching accuracy up to 0.01mm.
High-Drop CF3R Printhead
The Toshiba CF3R internal circulation printhead achieves printing with a drop height of up to 25 mm, with no ink drift, ensuring stable printing, and brighter image quality.
Support roll and sheet printing
Optional roll and sheet molds can print rolls and sheets with a width of less than 1270mm, including soft film, crystal, gold stamping, KT board, and acrylic.
Cylinder and mug printing
Cylinder molds can print cylindrical objects of Φ25-200mm and Φ8-100mm respectively, and mug molds can print three mugs or cones of Φ40-200mm at the same time.

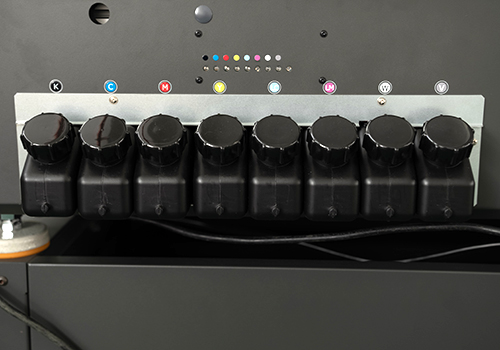

8-color printing solution
8-color professional printing solution, richer color levels, more stunning details, suitable for high-end design.
3.5pl variable ink drop printing
3.5pl printing finer, clearer details, uniform colour transition, while consuming less ink.
Product Specification
| Product | KJ-1212 Multifunctional UV Flatbed Printer |
| Model | KJ-1212UV |
| Printhead (option 1) | 3-7 * Toshiba CE4-M |
| Print Height | 0-800mm |
| Printhead (option 2) | 5 * Toshiba CF3R (High-Drop Solution) |
| High-Drop Height | 1-25mm |
| RIP Software | RIIN, photoprint |
| Print Range | 1200x1200mm |
| Print Accuracy | 600*1800 (dpi) |
| Printing Speed | Output (sqm/h) |
| High Speed | 600*900 dpi-6pass 19.5m²/h ; 600*1200 dpi-8pass 12.5m²/h ; 600*1800 dpi-12pass 10.1m²/h |
| Medium Speed | 600*900 dpi-6pass 15.1m²/h ; 600*1200 dpi-8pass 12.05m²/h ; 600*1800 dpi-12pass 9.05m²/h |
| Low Speed | 600*900 dpi-6pass 12.1m²/h ; 600*1200 dpi-8pass 9.8m²/h ; 600*1800 dpi-12pass 7.05m²/h |
| Ink Type | UV ink |
| Ink Color | C, M, Y, K, LC, LM, W, V |
| Curing | Dual UV LED lamps with water-cool |
| Image Format | TIFF/JPEG/PNG/PDF/EPS |
| Computer System | Win7/Win8/Win10 |
| Input Voltage | AC-220V (±10%) , 50/60HZ , ≤16A |
| UV Lamp | Import UV-LED |
| Servo Motor | Fuji servo motor Japan |
| Linear Guide | Japan THK mute guide rail |
| Screw | Taiwan silver wire rod |
| Drag Chain | Igus tow chain |
| Switch | Delixi/chint |
| Platform Type | Rigid vacuum adsorption platform |
| Platform Partition | Rear area adsorption |
| Environment | Clean and dust-free, no direct sunlight, and well-ventilated environment, temperature 15 to 30℃, humidity 30-70% |
| Operating Power | <3250W |
| Weight | ≤528KG |
| Machine Size | 2300*1750*1100 (mm) |
| Package Size | 2400*1950*1000 (mm) |
| Miscellaneous Function | Automatic height measurement, automatic anti-collision, automatic electrostatic removal, negative pressure ink supply, secondary ink cartridge preheating. |
Get In Touch With Us
Multifunctional Flatbed UV Printer Applications
High-Drop UV Printing Keyboard
High-Drop UV Printing Toys
High-Drop UV Printing Mouse
Wood
Phone Cases
golf ball
cylindrical item
suitcase
Pens
Other flatbed printing machines
- Size: 60x90cm
- 2-4 * ricoh G5i/Toshiba print heads optional.
- CMYKW+varnish
- Unparalleled precision and quality.
- Fast printing speed and durability.
- Varnish relief printing, exquisite pattern.
- Widely suitable for glass, plate, MDF, acrylic, leather, metal, and other materials.
- Size: 100x60cm
- 2-4 * EPSON I3200 print heads optional.
- CMYKW/LC/LM/LK/LKK/V
- 10-color printing, natural gradient color transition.
- Multi-function printing of flat/rolled/cylindrical objects.
- Suitable for high-end, customized processing companies.
- Size: 2.5×1.3m
- 2-8 * ricoh Gen5/Gen6 print heads optional.
- CMYKW+varnish
- High productivity and high stability.
- Suitable for processing companies or building materials factories.
- Industrial-grade production of MDF, cardboard, acrylic, tiles, wood, etc.
FAQ
What is UV flatbed printing?
UV flatbed printing is also known as “UV direct to substrate printing”. It achieves “drying immediately after printing” by directly spraying UV curing ink on the surface of the material. It is more durable and has a 3D embossed visual effect, which is widely used in personalized gifts, home decoration, industrial customization, advertising signs, etc. It is a digital upgrade solution for traditional printing processes.
Can multifunctional UV flatbed printer print anything?
UV flatbed printer is called “universal printer”. It can print most hard substrates (such as acrylic, metal, glass, wood, etc.) and flexible rolls (such as PVC, leather, cloth, wallpaper, etc.). Select rotary attachments or molds, and also support printing of special-shaped objects such as cylinders and mugs. In addition, some smooth or special materials (such as uncoated metal and glass) need to be coated first to improve adhesion.
Can multifunctional flatbed UV printer print on fabrics?
It is not recommended to print fabrics. If you need to print textile fabrics, you can choose DTF printer or DTG printer to print T-shirts or other clothes specifically, which is more resistant to washing.
