KingJet KJ-R001FC High Drop UV Cylinder Printer for Tumbler
The industrial-grade UV cylinder printer is designed specifically for high drop and irregularly curved surfaces, achieving high precision and high speed while equipped with an intelligent modeling scanning system for perfect pattern stitching. This meets the high-standard printing needs of cups, wine bottles, cosmetics, and more.
Key Features:
1. Professional ICC color technology: easily print full color, gradients, and other effects with rich colors and stable output.
2. High-precision irregular-shaped printing: Supports cylinders, conical, and special-shaped bottles, as well as high-drop bottles, with seamless 360° perfect stitching.
3. Efficient and stable production: multiple print speed modes are available, achieving print speeds as fast as 37s/pc, balancing efficiency and quality.
4. Ultra-stable ink system: the unique Toshiba printhead internal circulation function ensures smooth printing and significantly extends printhead life.
5. Wide material compatibility: suitable for plastics, glass, metals, aluminium bottles, and more, meeting diverse customization needs.
Configuration Highlights:
- Print Head: Toshiba CF3 industrial internal circulation printhead
- Print Head QTY: Maximum 5pcs
- High Drop Printing: Yes
- Print Range: Diameter Φ40-200mm; Length 1-300mm
- High-speed Print Mode: 37s/pc
- Color: CMYKLcLmWV
- Supported Shapes: Cylindrical, conical, and irregular round bottles with high drop
Excellent Printing Effects with High Drop UV Cylinder Printer
High Drop UV Cylinder Printer features

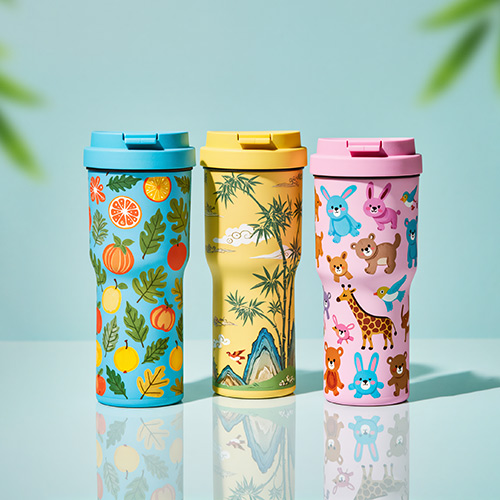

360° Seamless UV Printing
360° rotating UV technology achieves perfect splicing on cylindrical surfaces of various materials and shapes, providing a natural and smooth feel.

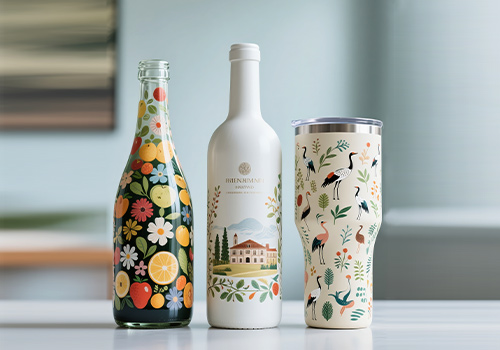

High-Drop Cylindrical Printing
Automatically detect height changes of various irregular bottles, and adjust printing positions to ensure precise ink adhesion and uniform curing.

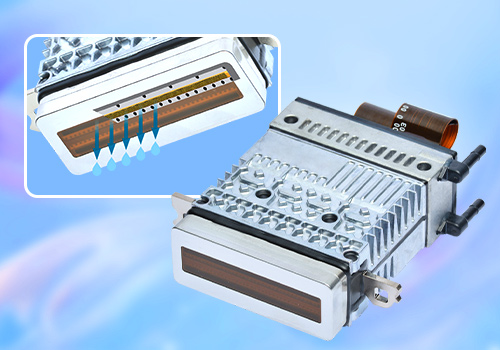

Toshiba CF3 Print Head
Adopting 3.5pl fine inkjet technology, combined with internal circulation design, effectively extends the nozzle life and maintains high precision, fast, and stable output.

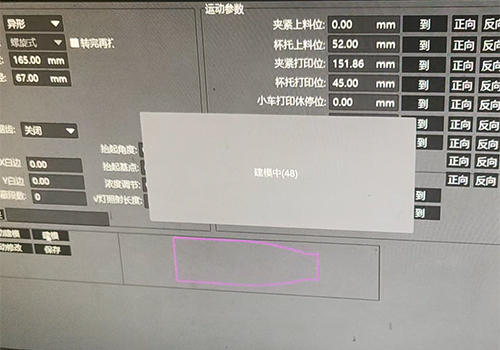

Modelling and Scanning function
The built-in model scanning system enables automated modeling and layout through software. The pattern precisely matches the bottle body, achieving seamless overlap and improving production efficiency.

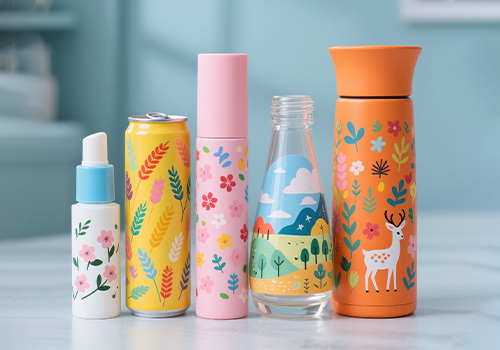

Supports Multiple Print Sizes
Highly flexible, compatible with diverse materials and bottle shapes, it can print various cylindrical objects with diameters ranging from Φ4-20cm and lengths from 1-300mm.

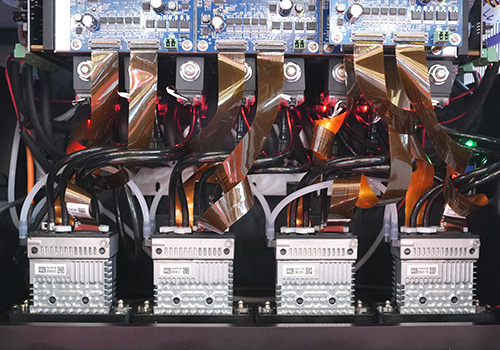

Innovative Ink Path Design
Ensures smooth ink transfer, significantly reducing bubble generation for more precise pattern effects, and can be turned on and off at any time.
Product Specification
Product | High drop UV cylinder printer |
Model | KJ-R001FC |
Printhead Type | Toshiba CF3 industrial internal circulation printhead |
Number of Printheads | Maximum 5pcs |
Print Accuracy | 600*900dpi-6pass |
Print Speed | (print size 235*314mm, WCV), high-speed mode:37s/pc; production mode: 50s/pc; high-quality mode:1min 26s/pc |
Ink Configuration | CMYKLcLmWV |
Ink Supply System | Negative pressure ink supply |
UV Curing System | UV-LED water-cooled light source |
Print Range | Diameter: Φ40-200mm; Length: 1~300mm |
High Drop Printing | Yes |
Supported Shapes | Cylindrical, conical, and irregular round bottles with high drop |
Supported Materials | Plastic, metal, and glass bottles |
Applicable Scenarios | Printing factory, cup factory, online gift customization company, etc. |
Transport Interface | Cat.6A Ethernet |
Image Formats | TIFF, JPEG, PNG, PDF, EPS |
Computer System | Windows 7/8/10 |
Input Voltage | AC 220V(±10%), 50/60Hz≤16A |
Operating Power | Standby 300W/ Full operation 1150W |
Operating Environment | Clean, dust-free, no direct sunlight, well-ventilated. Optimum temperature: 15-30 °C, relative humidity:30-70%。 |
Machine Size | 1500*700*1600mm |
Get In Touch With Us
Start Your Personalized UV Bottle Printing Business

Cylinder UV printer for tumbler

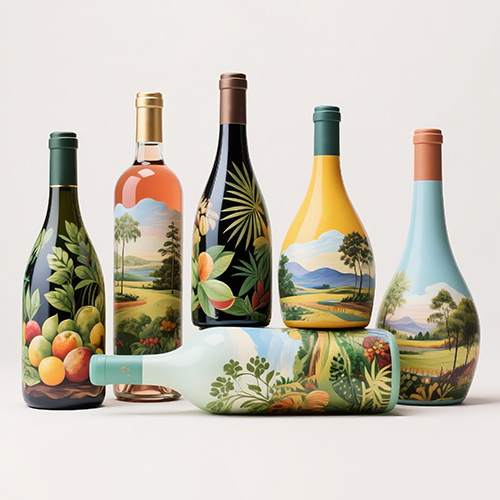

UV cylinder printer for wine bottles

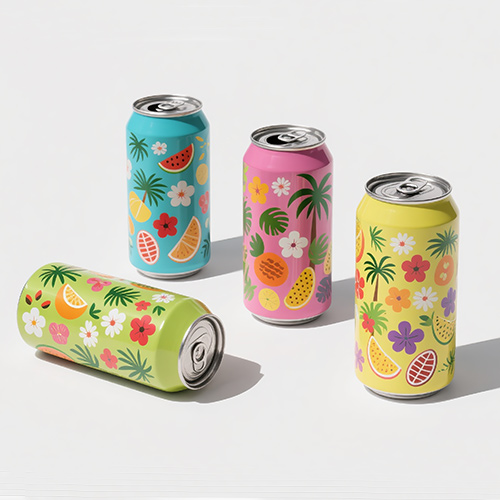

UV cylinder printer for cans

Rotary UV printer for various bottles

UV cylinder printer for thermos cups

UV rotary printer for cosmetic bottles
FAQ
What materials can high drop UV cylinder printer print on?
Suitable for various materials such as glass, metal, plastic, ceramics, etc., It’s especially designed for cylindrical, conical, and irregularly curved surfaces, supporting high-drop printing to meet the specialized printing needs of special-shaped products.
What is the accuracy and durability of high drop UV cylindrical printing?
The KingJet high drop UV cylinder printer adopts industrial grade Toshiba nozzles and UV LED curing technology, with high-precision output of 600x900dpi, clear pattern edges, and natural splicing. Cured UV ink is scratch-resistant, waterproof, and UV-resistant, and can be used outdoors for 3-5 years without fading.
What are the main advantages of the Toshiba CF3 printhead compared to other brands?
The core advantages of the Toshiba CF3 industrial-grade piezoelectric printhead lie in its high precision, high speed, and high stability. Ultra-fine 3.5pl ink droplets ensure smooth, detailed images. Its built-in intelligent circulation system effectively prevents ink settling and reduces the risk of nozzle clogging, making it ideal for industrial environments with frequent starts and stops or long-running production. This means lower malfunction rates, less maintenance, and consistent output quality.
Is this high-drop UV cylindrical printer suitable for personalized, high-volume, and multi-material production?
Very suitable. It adopts digital UV printing technology, which does not require complex processes such as plate making and color matching in traditional printing. Combining intelligent fixtures and modeling scanning functions, when switching between different bottle shapes, simply replace the fixture and perform a quick scan to start printing, achieving flexible and efficient production. It is the preferred choice for personalized, multi batch, and multi material cylindrical printing.
