KingJet KJ-R001E 360 Rotary UV Printer for Bottle
This 360° rotary UV printer enables seamless printing on cylindrical and conical surfaces. Equipped with UV-curable ink and precision rotating machinery, it delivers optimal printing results for cylindrical objects of various materials and shapes, producing vibrant, durable designs. Such as glass cups, thermoses, wine bottles, sports bottles, lipstick tubes, and cosmetic bottles.
Key Features:
1. 360° seamless full-coverage printing with natural seams, low graininess, and smooth textures.
2. Fast printing speed, it only takes 60 seconds to print a bottle (except for complex patterns), and stable production.
3. Simple and convenient operation, user-friendly, and low maintenance cost.
4. 3D embossed printing technology, showcasing a high gloss effect, scratch and wear resistance.
5. Widely applicable and highly customizable, it can freely print cylindrical or conical objects with diameters ranging from 4cm to 18 cm.
Configuration Highlights:
- Print head: 1*Epson i3200U1-HD
- Print Accuracy: 720*1800 dpi
- Print Diameter Range: Φ40-180mm (custom sizes supported)
- Print Length Range: 1-300mm
- Print Speed: CMYKWV, 6-pass printing, approx. 60s per bottle (depending on image complexity)
- Color: CMYK+W+V
- Supported Shapes: Cylindrical, conical
360 Rotary UV Printer features
Seamless 360° Printing

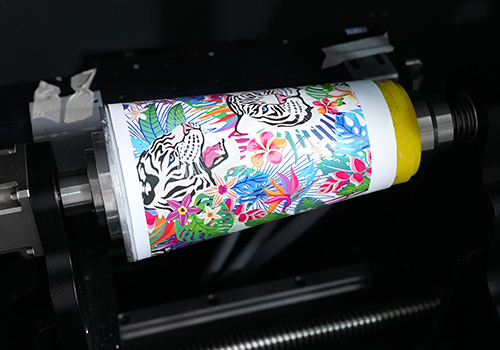

Utilizing a high-precision rotary control system enables seamless 360° printing on cylindrical surfaces, with no overlaps or gaps, and natural color transitions.
Excellent Embossed Effects
High-gloss embossed printing technology ensures rich textures, distinct three-dimensional layers, enhanced tactile feel, and scratch resistance.

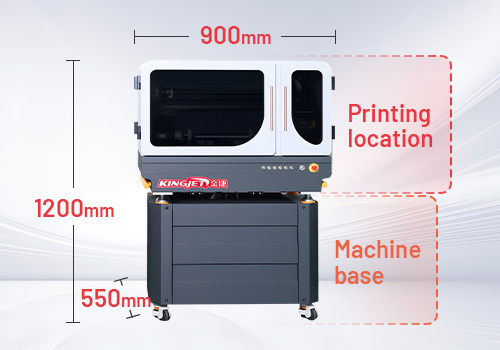

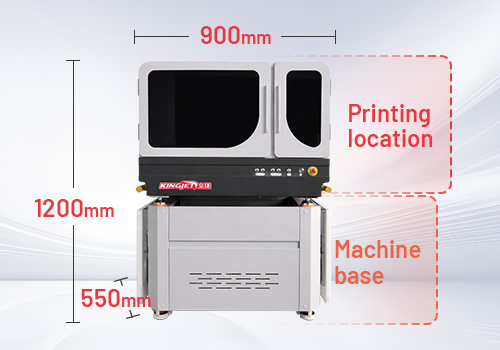

Compact Body
Compact size with comprehensive performance, balancing printing stability with space efficiency, particularly suitable for startups.

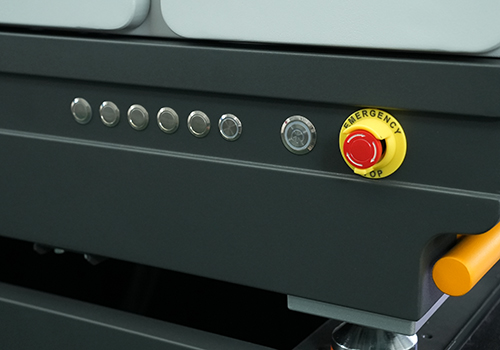

User-Friendly Control Panel
Intuitive operation process with one-button start/stop, no complex procedures required, making it ideal for beginners, and easy to master quickly.

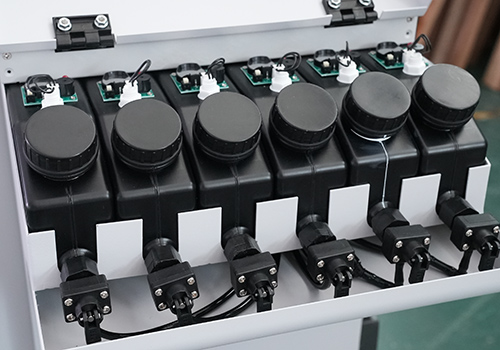

Ink Supply System
Utilizes a positive pressure ink supply system with strong ink supply power and high pressure controllability to prevent nozzle ink blockages.

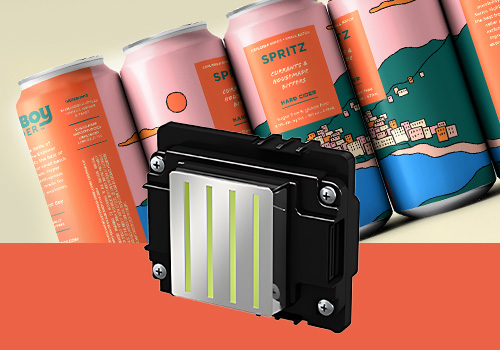

EPSON Single Head
The single-head design simplifies mechanical complexity, enabling ultra-high-precision printing of complex patterns and easy calibration.
Product Specification
| Product | 360 Rotary UV Printer |
| Model | KJ-R001E |
| Printhead Type | 1*Epson i3200U1-HD |
| Print Accuracy | 720*1800 dpi |
| Print Speed | CMYKWV, 6-pass printing, approx. 60s per bottle (depending on image complexity) |
| Ink Configuration | CMYKWV |
| Ink Supply System | Positive pressure ink supply |
| UV Curing System | UV-LED water-cooled light source |
| Print Diameter Range | Φ40-180 mm (custom sizes supported) |
| Print Length Range | 1-300 mm |
| Supported Shapes | Cylindrical, conical |
| Supported Materials | Plastic, metal, and glass bottles |
| Applicable Scenarios | Brand stores, digital print shops, printing companies, customized gift production, DIY creators |
| Transport Interface | Cat.6A Ethernet |
| Image Formats | TIFF, JPEG, PNG, PDF, EPS |
| Computer System | Windows 7/8/10 |
| Input Voltage | AC 220V(±10%), 50/60Hz≤16A |
| Operating Power | <200W |
| Machine Size | 900*550*1200mm, 139 kg |
| Machine Packing Size | 1500*960*1000mm, 220 kg |
| Operating Environment | Clean, dust-free, no direct sunlight, well-ventilated. Optimum temperature: 15-30 °C, relative humidity:30-70%。 |
Get In Touch With Us
Unleash your cylinder printing creativity with Rotary UV Printer
Rotary UV printer for tumbler

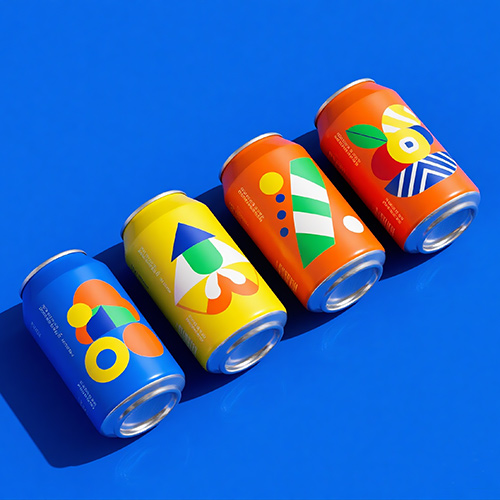

UV printing on cans

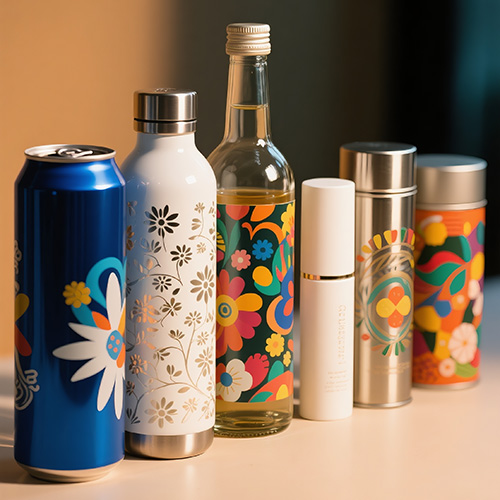

UV printing on various bottles

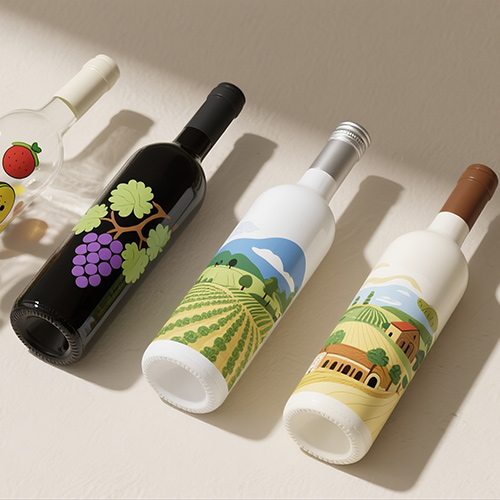

UV printing on wine bottles
UV printing on thermos cups

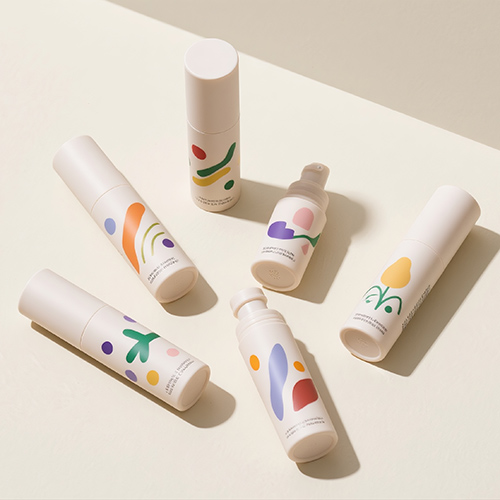

UV printing on cosmetic bottles
FAQ
What is a 360 Rotary UV printer?
A 360 rotary UV printer is an industrial device that integrates a high-precision rotating platform with UV curing technology. It enables 360° seamless, full-color printing on cylindrical, conical, and other irregular surfaces. The printed curved surfaces are naturally seamless and maintain distortion-free appearance. It also uses UV-curable ink, which dries instantly on a variety of materials, creating durable, vibrant images.
What materials can a UV cylinder printer print on?
UV cylinder printer offers a wide range of material compatibility and excellent adhesion, and can print on the following cylindrical objects:
Glass: wine bottles, cosmetic containers, beverage bottles, etc.
Plastics: PET bottles, ABS cups, plastic sports bottles, etc.
Metals: stainless steel thermoses, aluminum cans, metal commemorative cans, etc.
Ceramics: mugs, ceramic bottles, decorative ceramics, etc.
What industries can 360 rotary UV printer be used in?
The high-resolution output of 360 rotary UV printer is particularly suitable for manufacturing fields that require customization, high flexibility, and high-value-added products.
Packaging Industry
Used for personalized customization and small-batch production of bottles for alcohol, cosmetics, beverages, and high-end gift packaging.
Promotional Gift Industry
Producing metal, ceramic, and commemorative cups with custom company logos to meet marketing and gift customization needs.
Home and Decoration Industry
Printing highly designed home containers, decorative bottles and jars, and personalized household items.
Consumer Goods Industry
Applicable to printing on metal or plastic casings, such as thermoses and sports bottles, for exterior decoration.
