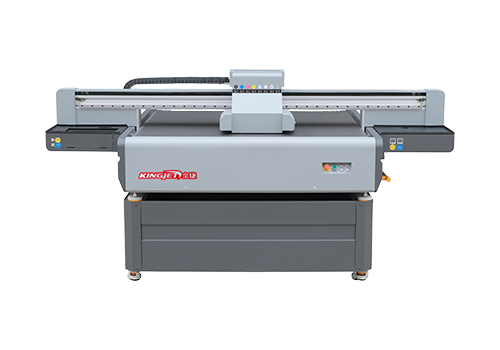

KingJet KJ-9060UV Visual Positioning UV Flatbed Printer for Promotional Items
The visual positioning UV flatbed printer 9060 has the characteristics of versatility, high resolution, and stable performance. It is very suitable for printing various promotional items, acrylic, glass, wood, leather, PVC, and signs, etc.
Key Features:
1. Visual positioning technology, scanning and printing, high efficiency.
2. Optional rotary attachments and molds, printing pens, cosmetics, thermos cups, etc.
3. Multi-function UV printer, realizes one-machine printing of flat, roll, and cylindrical, high-drop objects.
4. Matte/gloss/gold foil stamping, UV printing solutions.
Configuration Highlights:
- Printhead: Toshiba CE4-M
- Printhead QTY: 3-7 printheads
- Print Size: 1000x700mm
- Print Accuracy: 600×1800(dpi)
- Print Height: 0-800mm
- Color: CMYK, LC, LM, W, V
- Software: Ultraprint, photoprint
Visual positioning UV flatbed printer features
CCD intelligent visual positioning
Automatically calibrate the printing position, with 1200dpi ultra-high resolution, matching accuracy up to 0.01mm.
0-80cm height flexible printing
Breaking through the limitations of traditional UV flat printing, it supports printing at a height of 0-80cm, meeting various printing needs such as flat surfaces, cylindrical bottles, and high-drop objects.
Support roll and sheet printing
Optional roll and sheet molds can print rolls and sheets with a width of less than 914mm, including car stickers, vinyl, KT boards, and acrylic.
Cylinder and mug printing
Cylinder molds can print cylindrical objects of Φ25-200mm and Φ8-100mm respectively, and mug molds can print three mugs or cones of Φ40-200mm at the same time.
High-performance IGUS drag chain
More wear-resistant, suitable for high-speed and high-frequency printing, can greatly reduce wear problems and ensure long-term stable operation of the equipment.
Efficient UV system
The UV lamp is matched with a UV curing system, which has a fast drying speed, delicate printing patterns, and strong adhesion.
Product Specification
| Product | KJ-9060 visual positioning UV flatbed printer |
| Model | KJ-9060 |
| Printhead | Toshiba CE4-M |
| Printing Head QTY | 3-7 pcs optional |
| Print Range | 1000x700mm |
| Print Accuracy | 600*1800 (dpi) |
| Print Height | 0-800mm |
| Printing Software | DAYOU |
| Printing Speed | Output (sqm/h) |
| High Speed | 600*900 dpi-6pass 19.5m²/h ; 600*1200 dpi-8pass 12.5m²/h ; 600*1800 dpi-12pass 10.1m²/h |
| Medium Speed | 600*900 dpi-6pass 15.1m²/h ; 600*1200 dpi-8pass 12.05m²/h ; 600*1800 dpi-12pass 9.05m²/h |
| Low Speed | 600*900 dpi-6pass 12.1m²/h ; 600*1200 dpi-8pass 9.8m²/h ; 600*1800 dpi-12pass 7.05m²/h |
| Ink Type | UV LED ink |
| Ink Color | C, M, Y, K, LC, LM, W, V |
| Software | Ultraprint/photoprint |
| Curing | Dual UV LED lamps with water-cool |
| Image Format | TIFF/JPEG/PNG/PDF/EPS |
| Computer System | Win7/Win8/Win10 |
| Input Voltage | AC-220V (±10%) , 50/60HZ , ≤16A |
| UV Lamp | Import UV-LED |
| Servo Motor | Fuji servo motor Japan |
| Linear Guide | Japan THK mute guide rail |
| Screw | Taiwan silver wire rod |
| Drag Chain | Igus tow chain |
| Switch | Delixi/chint |
| Platform Type | Rigid vacuum adsorption platform |
| Platform Partition | Rear area adsorption |
| Environment | Clean and dust-free, no direct sunlight, and well-ventilated environment, temperature 15 to 30℃, humidity 30-70% |
| Weight | ≤405KG |
| Machine Size | 2080*1100*1100 (mm) |
| Package Size | 2300*1400*1000 (mm) |
| Miscellaneous Function | Automatic height measurement, automatic anti-collision, automatic electrostatic removal, negative pressure ink supply, secondary ink cartridge preheating. |
Get In Touch With Us
Visual positioning UV flatbed printer Applications
Phone Cases
golf ball
cylindrical item
Pens
suitcase
Acrylic
FAQ
What is UV flatbed printing?
UV flatbed printing is also known as “UV direct to substrate printing”. It achieves “drying immediately after printing” by directly spraying UV curing ink on the surface of the material. It is more durable and has a 3D embossed visual effect, which is widely used in personalized gifts, home decoration, industrial customization, advertising signs, etc. It is a digital upgrade solution for traditional printing processes.
Can 9060 visual positioning UV flatbed printer print anything?
UV flatbed printer is called “universal printer”. It can print most hard substrates (such as acrylic, metal, glass, wood, etc.) and flexible rolls (such as PVC, leather, cloth, wallpaper, etc.). Select rotary attachments or molds, and also support printing of special-shaped objects such as cylinders and mugs. In addition, some smooth or special materials (such as uncoated metal and glass) need to be coated first to improve adhesion.
Can flatbed UV printer print on fabrics?
It is not recommended to print fabrics. If you need to print textile fabrics, you can choose DTF printer or DTG printer to print T-shirts or other clothes specifically, which is more resistant to washing.
