KingJet KJ-606 6-Head DTF Machine with 9 Colors
The 6-head DTF machine achieves unprecedented printing speed and accuracy, and the 9-color printing enhances color expression, meeting your dual pursuit of high efficiency and high quality in T-shirt printing.
Key Features:
1、Excellent multicolor solubility: more vibrant printing effects.
2、Advanced software: Caldera and Fiery enhance color and precision.
3、Speed, quality and color all at one: meeting diverse needs.
4、Easy calibration: special head arrangement simplifies the process.
Configuration Highlights:
- Printhead: 6*EPSON I3200-A1
- Printing Speed: 4pass: 30sqm/h ; 6pass: 20sqm/h ; 8pass: 16sqm/h
- Max Print Width: 680mm
- Color: 9 colors (C, M, Y, K, W, FM, FY, O, G)
- RIP Software: Maintop, photoprint, fiery, caldera
KJ-606 DTF printing machine details List
KJ-606 6-head DTF Machine feature
Fluorescent 9-color printing
Breaking the limitations of 5-color printing, 9 colors can achieve more delicate color transitions and wider color gamut coverage.
Upgraded oil drain port
Humanized design, the oil generated during the printing process will not flow out everywhere, saving maintenance time and cost.
Multi-language operation screen
It supports multiple international language switching, so enjoy a convenient and efficient printing experience.
Extended powder shaking
The printing area is larger, the powder is shaken more evenly, the drying speed is faster, and the efficiency and mass production are high.
Closed-loop powder shaking
Environmentally friendly, can reduce powder flying, and ensure the health and safety of operators.
Lifting ink stack
Automatically clean and moisturize the nozzle, extend the service life of the nozzle, and reduce maintenance costs.
24-inch DTF Machine Video
KJ-606 6-Head DTF Machine printing Process
Product Parameter
| Product | KJ-606 DTF printer |
| Model | KJ-606 |
| Printhead | 6*EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 30sqm/h |
| 6 Pass | 20sqm/h |
| 8 Pass | 16sqm/h |
| Max Media Width | 730mm |
| Max Print Width | 680mm |
| Ink Type | Water-based pigment ink |
| Color | 9 colors (C, M, Y, K, W, FM, FY, O, G) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Heating System | Intelligent embedded heating system & powder melt system |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, photoprint, fiery, caldera |
| Input Power | AC110V/220V, 50HZ/60HZ, 350W-3400W |
| Working Environment | Temperature: 18-32℃, humidity: 46-65% |
| Machine Size | Printer: 1930*835*1355mm, 180kg ; shaker: 2860*1022*1076mm, 310kg |
| Packing Size | Printer: 2720*890*790mm, 240kg , 1.910cbm ; shaker: 2100*1160*1150mm, 350kg , 2.810cbm |
Get In Touch With Us
Other DTF printing machines
- 60cm/24-inch
- 5 colors
- 3/4 EPSON I3200 heads
- powder-free, eco-friendly
- A3 desktop size
- 5 colors
- 1*EPSON XP600 head
- compact, suitable for beginners
- 12-inch/A2/42cm
- 5 colors
- 2*EPSON I3200/I1600/XP600 heads
- cost-effective
- 12-inch/A2/42cm
- 5 colors
- 2*EPSON I3200/I1600/XP600 heads
- printing-shaking-drying integrated design
- 24-inch/60cm
- 5 colors
- 2*EPSON I3200 heads
- high-speed & high-precision
- 24-inch/60cm
- fluorescent 9 colors
- 4*EPSON I3200 heads
- multi-color & high-precision
- 24-inch/60cm
- 5 colors or 8 colors (RGBO and fluorescent)
- 4*EPSON I3200 heads
- multi-color DTF t-shirt printing solution
- 24-inch/60cm
- 5 colors
- 5*EPSON I3200 heads
- highly efficient & fast printing
- 31″/80cm
- 9 colors (RGBO and fluorescent)
- 4*EPSON I3200 heads
- wide-format batch production
- 47″/1.2m
- 5 colors
- 8*EPSON I3200 heads
- professional garment DTF machine
6-Head DTF Machine Applications
KingJet 6-head DTF machine breaks the limitations of traditional 6-color printing and uses 9 professional-grade DTF ink colors, with a wider color gamut and brighter colors. Whether it is gradient color textile printing or high-precision art patterns, all can be printed perfectly. In addition, it supports large-scale production and flexible response to diverse market needs, making your DTF T-shirt printing boundless.
I3200 DTF printer for t-shirt
Hoodie
Denim
shoes
Umbrella
Canvas bag
FAQ
What is needed for DTF printer printing?
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
What fabrics can DTF technology be applied to?
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
What is the print cost for DTF?
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
What is the usage ratio of DTF various consumables?
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml; white:15-30ml; powder:10-20g
DTF printer operation process?

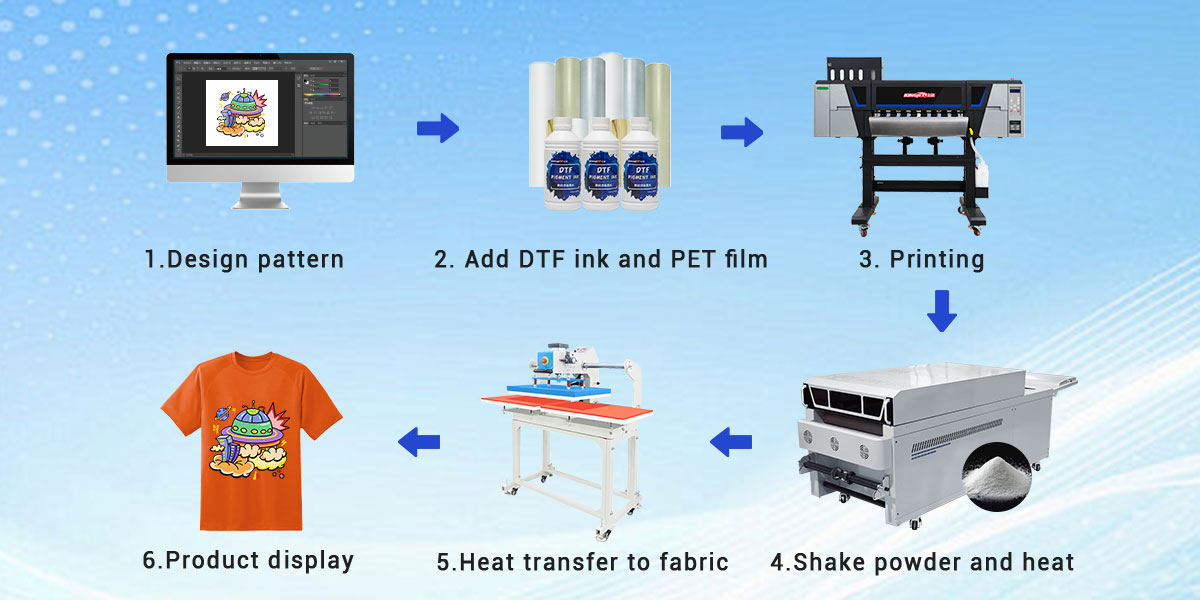

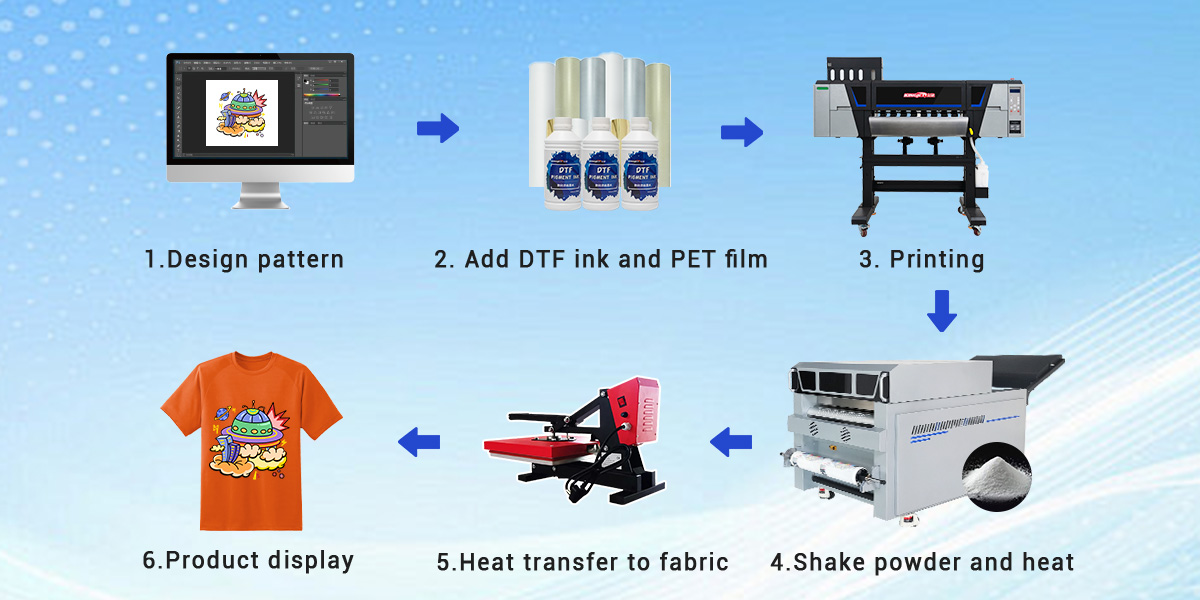

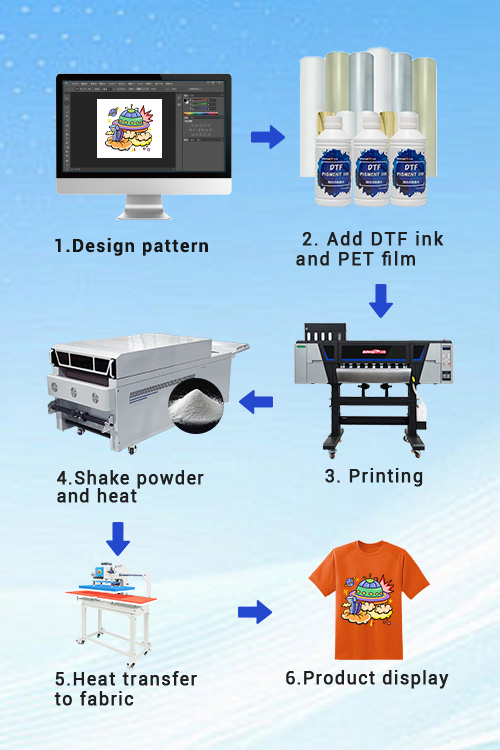

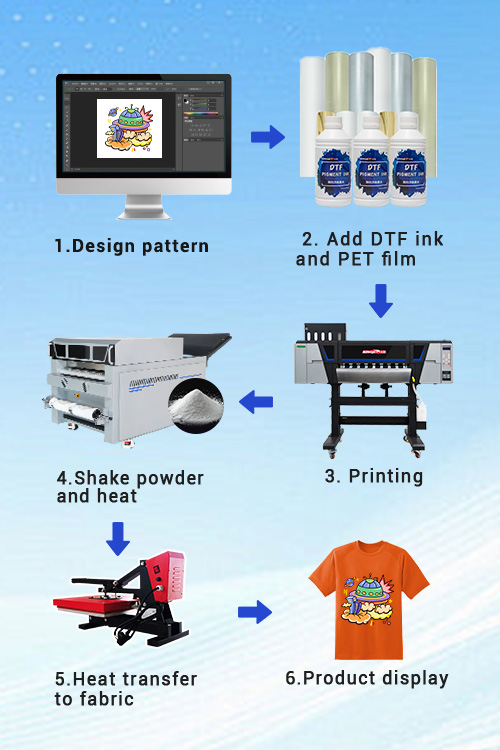

Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
What is the printhead used in the machine? Is the printhead original?
The printhead used in our Kingjet DTF printer is EPSON I3200A1 and all of our printhead is original and brand new.
How long will the print last on the garment? How many times will it be washed?
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Is the voltage selectable?
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
