Intelligent and high-quality KJ-602 DTF printer with integrated printing processes and eco-friendly smoke purifier, providing you with comprehensive and professional T-shirt printing solutions.
Configuration Highlights:
| Product | KJ-602 DTF printer |
| Model | KJ-602 |
| Printhead | 2*EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 15 sqm/h |
| 6 Pass | 10 sqm/h |
| 8 Pass | 8 sqm/h |
| Max Media Width | 730mm |
| Max Print Width | 680mm |
| Ink Type | Waterbased pigment ink |
| Color | C, M, Y, K, W |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, photoprint, CADlink (optional) |
| Input Power | AC110V/220V, 50HZ/60HZ, 350W-4000W |
| Working Environment | Temperature : 18-32℃ , humidity : 46-65% |
| Machine Size | Printer: 1750*750*1450mm, 135kg ; shaker: 2105*1092*1100mm, 229kg |
| Packing Size | Printer: 1950*820*700mm, 182kg, 1.160cbm ; shaker: 2200*1120*1136mm, 303kg, 2.320cbm |
CMYK+W 5 colors can be applied to more than 90% of fabrics, regardless of color, and can be produced in batches.
No nozzle clogging, less dosage, Print clearly, available in CMYK+W and fluorescent color.
High temperature resistant, washable, high color fastness, available in black powder, white powder, medium powder and fine powder.
Provide various PET films, such as hot/cold/instant peeling film; single/double side film; A3/30/60cm pet film; gold/silver/glitter/gold foil PET film.
It is suitable for smaller size printing. It adopts an industrial-grade high-precision platform and the printing surface is flatter.
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
The printhead used in our Kingjet DTF printer is EPSON I3200A1 and all of our printhead is original and brand new.
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml；white:15-30ml；powder:10-20g

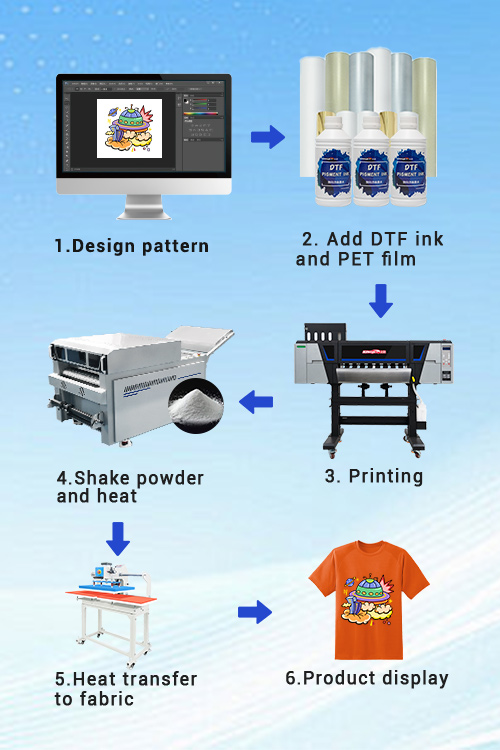

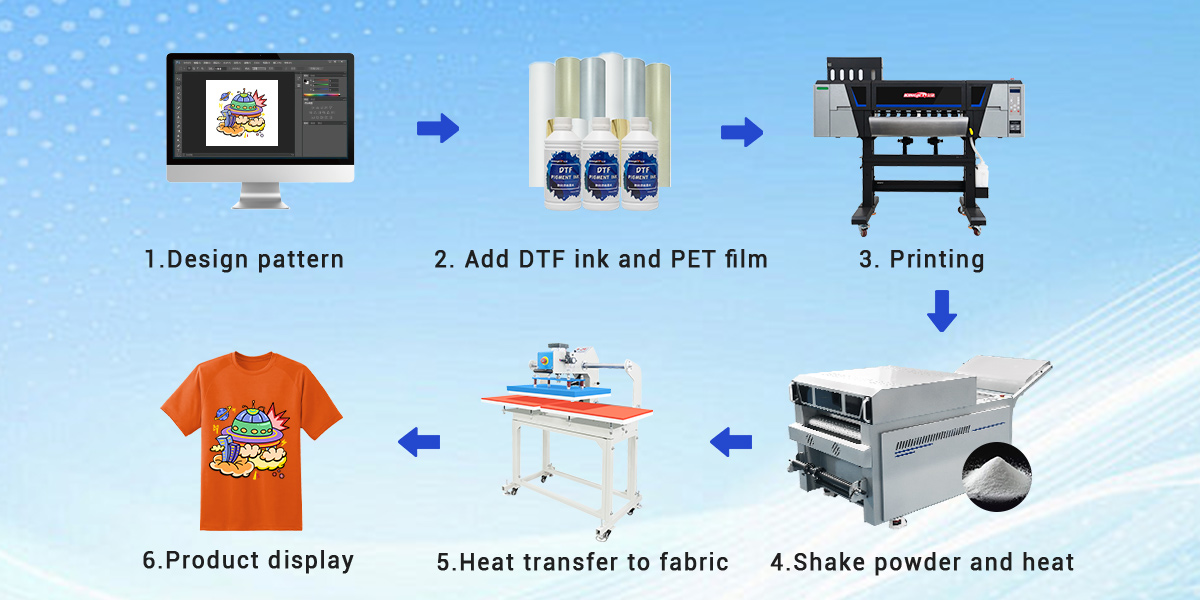

Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Regarding the problem of white ink clogging the printhead, our DTF printer is equipped with an automatic white ink circulation stirring system.
White ink clogging the print head is the most difficult maintenance and problem for DTF printers. Our system can effectively prevent this situation. When the machine is not working during holidays, you can turn on the white ink circulation system with a button to keep the white ink in a moist and non-caking state.
Moreover, our ink bottle is a cylindrical design instead of a rectangular parallelepiped design, which can effectively avoid ink deposition and greatly prevent print head clogging.
Lastly, as regards the printhead cleaning, our machine has a unique ink stack automatic cleaning system. Just press the cleaning button, and the printhead will return to the ink stack position for automatic cleaning. The operation is simple and efficient.
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
Comprehensive service starting from pre-sale to after-sale to help your business on track.
To show the quality and capability of our printer to satisfy your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
To meet everyone’s order quickly, we have established branches in many places around the world, saving transportation time. Products in stock usually ship within 3-5 days.
You can enjoy one-year warranty on the main components of our brand machines, lifetime service for the entire machine operation, free after-sales consultation, and 24/7 technical support services.
In order to meet your various payment needs, we can accept many payment methods, such as TT, PayPal, credit card, letter of credit, western union, moneygram, etc.
Contact us anytime for professional and personalized services.
